CAT 3406E 40‑Pin ECU Connector Repair Kit (Key B – ECM Side)

The CAT 3406E 40‑Pin ECU Connector Repair Kit (Key B – ECM Side) provides a practical solution for repairing damaged or corroded ECM‑side harness connectors used on Caterpillar engines. When an ECM connector becomes damaged, however, engine communication problems can occur. Because of this, the kit allows technicians to restore proper electrical connection without replacing the entire engine harness.

Many technicians search for this kit under names such as CAT 3406E Key B connector or Caterpillar 40‑pin ECM plug. As a result, it serves as a cost‑effective repair option for multiple CAT engine platforms.

CAT 3406E ECM‑Side Connector Repair Kit Overview

The ECM controls critical engine functions such as fueling and diagnostics. However, damage to the ECM‑side connector can interrupt these signals. Therefore, repairing the connector early helps prevent driveability issues and unexpected downtime.

Instead of replacing a full harness, this repair kit focuses specifically on the ECM‑side 40‑pin connector.

Compatible Caterpillar Engine Models Using 40‑Pin ECM Connectors

This Key B 40‑pin ECM connector repair kit commonly supports the following Caterpillar engines:

• CAT 3406E
• CAT C10
• CAT C11
• CAT C12
• CAT C13
• CAT 3126
• CAT 3176

Because these engines rely on 40‑pin ECM connectors for communication, maintaining a solid connector is critical for normal operation.

What’s Included in the CAT 40‑Pin ECM Connector Repair Kit

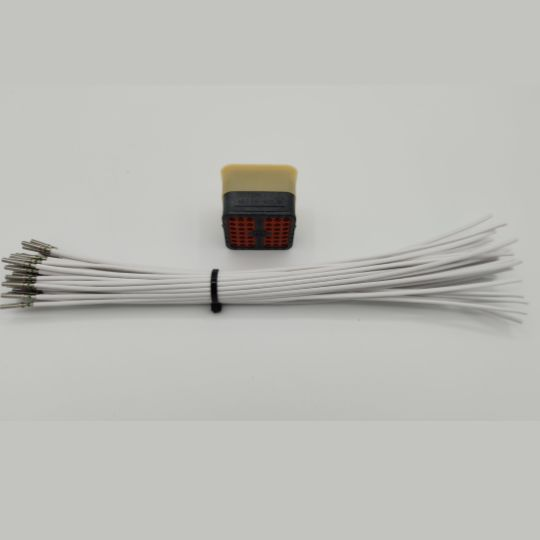

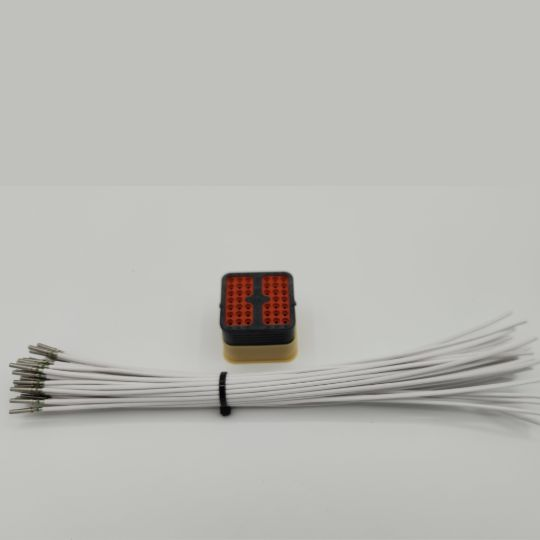

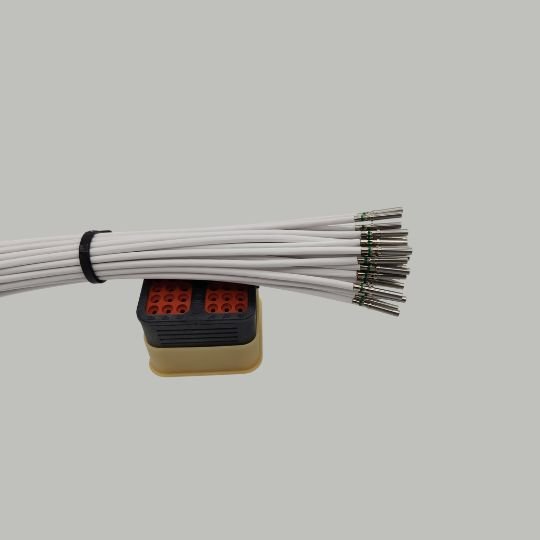

Connector and Pre‑Crimped Wires

This kit includes the necessary components for ECM‑side connector repair:

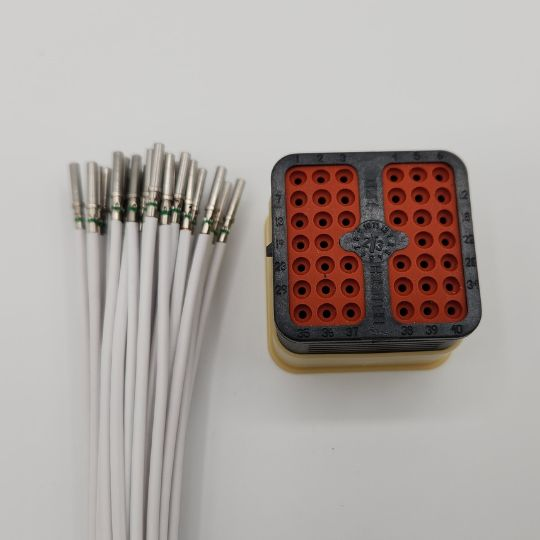

• 1x 40‑Position Connector (Key B – ECM Side)

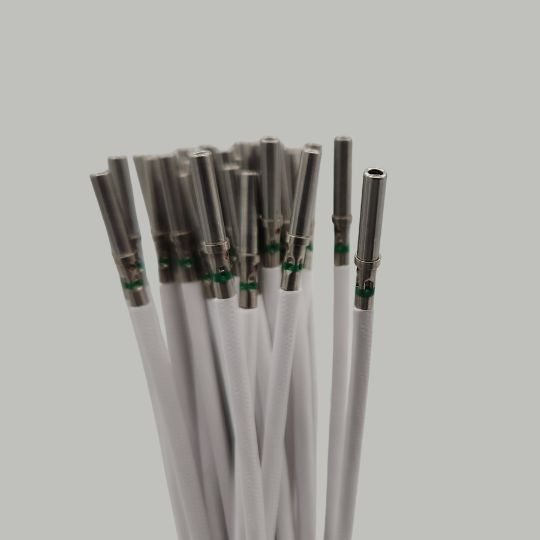

• 40x Pre‑Crimped Wires with matching pins (1 ft each)

Because the wires come pre‑crimped, technicians can complete repairs faster. As a result, downtime is reduced and installation consistency improves.

ECM‑Side Connector Repair for Engine Performance Issues

The ECM manages several engine functions. For example, it controls:

• Fuel delivery
• Injection timing
• Sensor communication
• Engine diagnostics

When the ECM connector fails, however, problems may occur such as:

• No‑start conditions
• Engine fault codes
• Communication errors
• Engine derate
• Intermittent shutdowns

Rather than replacing the entire harness, replacing only the connector helps restore system reliability.

Built for Heavy‑Duty Diesel Engine Environments

Caterpillar engines operate in demanding conditions. Therefore, the connector must resist:

• High engine‑bay heat
• Constant vibration
• Oil and fluid exposure
• Long‑duration operation

Consequently, this CAT 40‑pin ECM connector repair kit is well suited for diesel repair shops, engine rebuild facilities, and fleet maintenance operations.

Key Features

• Designed for CAT 3406E ECM‑side applications
• 40‑pin Key B connector
• Includes 40 pre‑crimped wires
• Compatible with multiple CAT engine families
• Cost‑effective alternative to full harness replacement
• Suitable for professional diesel repair use

Important Note

This kit repairs the ECM‑side connector only.
Accordingly, the ECM module is NOT included.
