Diesel ECM / ECU Test Kit – Bench & On-Engine Diagnostic Leads

Do you test control modules found in diesel engines like PACCAR, Detroit Diesel, Caterpillar Inc., or Volvo Trucks?

Whether you need to bench test, program, or diagnose directly on the engine — without struggling to probe pins using aftermarket leads — you’ve come to the right place.

At ERD Powertrain, we specialize in wire harness repair kits and OEM-style diagnostic contacts that properly mate with factory ECU and ECM connectors. That means:

✔ No damaged terminals
✔ No unreliable back-probing
✔ No loose aftermarket pins
✔ Accurate and professional testing connections

Don’t wait. Get the right connectors and start testing the right way.

Compatible Diesel Control Modules

This test kit includes OEM-style contacts designed to interface with:

• Detroit Diesel ACM (Aftertreatment Control Module)

• Detroit Diesel MCM (Motor Control Module)

• Detroit CPC / CPC2 / CPC4 / CPC5

• PACCAR MX-11 ECM

• PACCAR MX-13 ECM

• Caterpillar 40-Pin ECU

• Caterpillar 70-Pin ECU

Ideal for diesel repair shops, ECM programmers, fleet maintenance departments, and engine rebuilders.

Select Wire Length & Contact Configuration

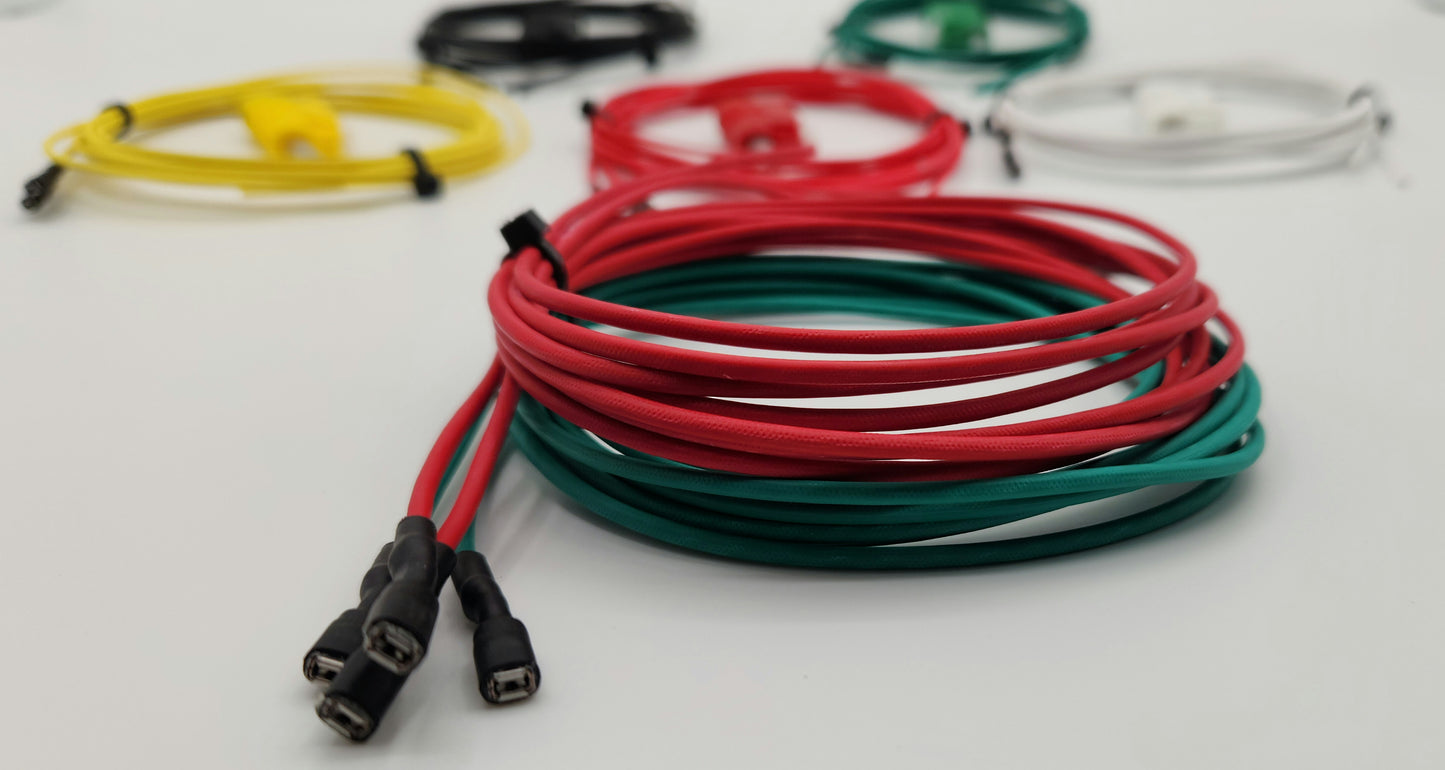

🔹 1 FT Leads (Ideal for Bench Testing & Programming)

Includes:

• 5x Caterpillar (40-pin / 70-pin) Sockets

  • 18 AWG wire

  • Colors match banana jack options

• 5x PACCAR MX-11 / MX-13 Female Contacts

  • 18 AWG wire

  • Colors match banana jack options

• 4x Detroit ACM / MCM / CPC / CPC2 / CPC5 Female Contacts

  • 14 AWG wire

  • 2x Green

  • 2x Red

🔹 5 FT Leads (Extended Reach for On-Engine Testing)

Includes:

• 5x Caterpillar (40-pin / 70-pin) Sockets

  • 18 AWG wire

  • Colors match banana jack options

• 5x PACCAR MX-11 / MX-13 Female Contacts

  • 18 AWG wire

  • Colors match banana jack options

• 4x Detroit ACM / MCM / CPC / CPC2 / CPC5 Female Contacts

  • 14 AWG wire

  • 2x Green

  • 2x Red

Longer leads allow improved accessibility during live engine diagnostics and troubleshooting.

Optional Add-On

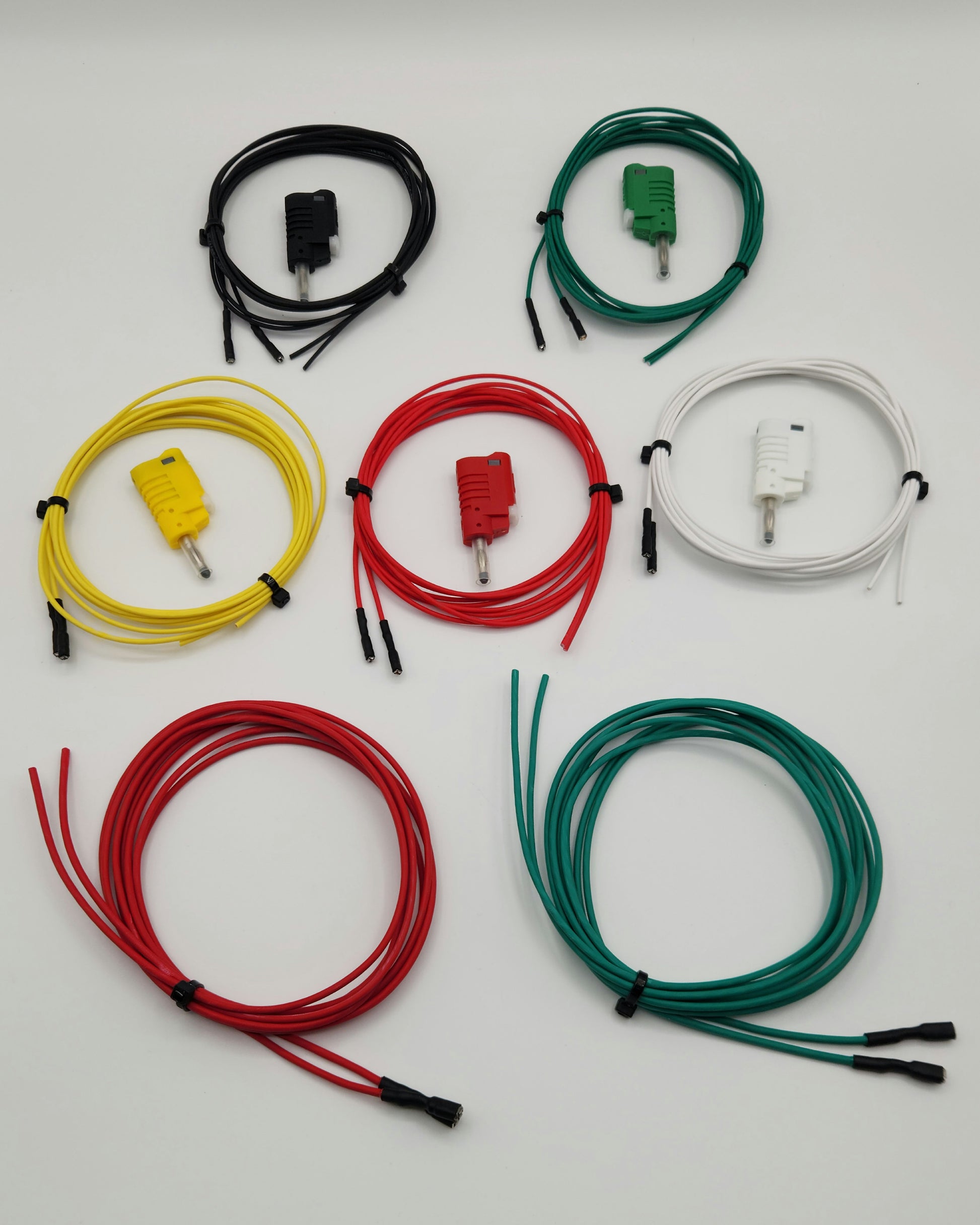

Quick-Connect Banana Jacks
Available Colors: Yellow, White, Red, Black, Green

Perfect for power supply hookup, multimeter testing, oscilloscope diagnostics, and ECM bench setups.

⚠ ECU / ECM NOT INCLUDED
